Shank Dia. |
1 1/16 in |
Overall Length |
6 3/8 in |
Flute Length |
4 1/2 in |
Reamer Size |
11/16 in |
Dimension Type |
Fractional Inch |
Large End Dia. |
11/16" |
Size- Decimal |
11/16" (0.6875) |
Shank Size |
1-1/16" |
Size |
11/16" |
Size - Decimal |
11/16 in - 0.6875 |
Cutting Dia. Tolerance |
+0.0080 in /-0.0000 in
|
Item |
Bridge Reamer |
Shank Type - Machining |
Hex Nut |
Finish - Machining |
Black Oxide |
Material |
High Speed Steel |
Flute Type |
Spiral |
Spiral Direction |
Left Hand |
Cutting Direction |
Right Hand |
Number of Flutes |
5 |
Cutting Direction - Machining |
Right Hand |
Chamfer Angle |
90 Degrees |
Material - Machining |
High Speed Steel |
Finish |
black oxide |
Measurement System |
Fractional Inch |
Shank Type |
Hex |
Chamfer |
60 Degrees |
Decimal Equivalent |
0.6875
|

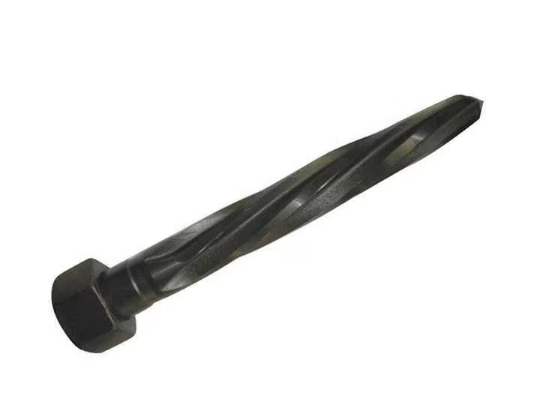

Bridge Reamer, Hex Nut, High Speed Steel, Black Oxide, 11/16 in
