Description
ALU ALLOY | DOUBLE GATE SYSTEM |ASYMMETRIC

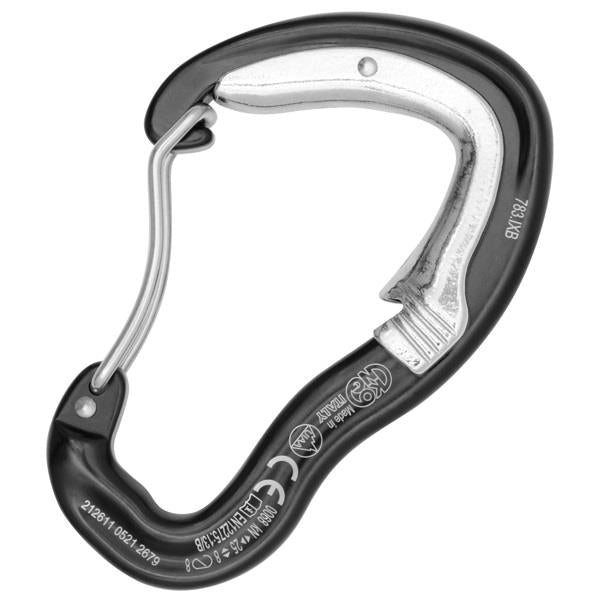

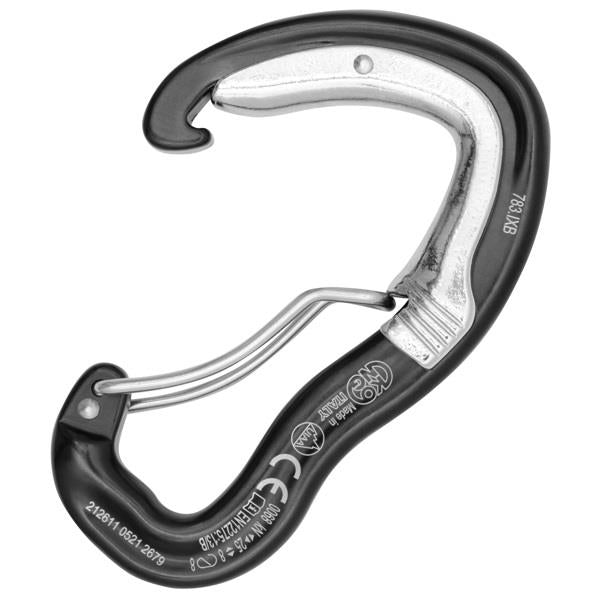

Special version of the Ergo Wire connector, the same used in the Panic system, equipped with an ingenious system that keeps the gate open until it comes into contact with the bolt. At this point the mechanism releases the gate and the connector closes automatically. The mechanism also prevents accidental gate opening when it is under load.
The particular shape makes it suitable to be handled more easily by people with small hands, like women or children.
ERGO WIRE is part of the ERGO family and is designed specifically for those environments where the connector is subject to a friction on the rope/cable, such as adventure parks or via ferrata. In the upper part there is a lever that acts as a safety against accidental opening of the connector: this lever is made of self-lubricating marine bronze and allows a better flow of the connector on the rope/cable. Often, especially in adventure parks, karabiners are very weared in the area of contact with the steel cable, and therefore no longer secure in case of a possible fall: with this protection the body of the connector is not touched and remains therefore always intact and secure.
The wire gate also offers a lifetime of about 4 times higher than the traditional levers made of bar, very popular feature in adventure parks where the cycles of opening/closing reach very high levels. Old Part # 783IY0NPPKK
Key Features:
- Improved opening and capabilities thanks to the bent D-shaped
- Slim profile for a small footprint
- Double gate system for maximum safety
- High quality product completely developed and manufactured in Italy
- Tested piece by piece
Standards - EN 12275/B, UIAA
Material - Alu Alloy
Type -
Main Axis Load - 25kN
Minor Axis Load - 8kN
Open Gate Load - 8kN
Weight - 80g
Shape - Asymmetric
A. Length - 99mm
B. Width - 64mm
C. Body Diameter - 11.5mm
D. Eyelet Diameter - /
E. Gate Opening Diameter - 19mm
Sleeve - Double Gate
