Description

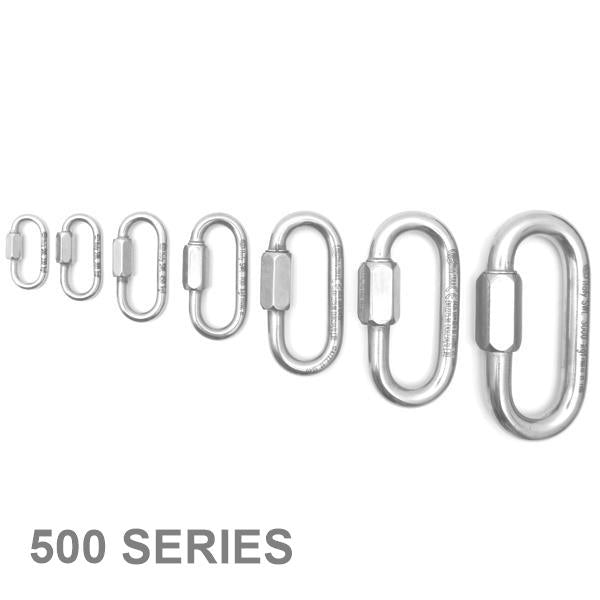

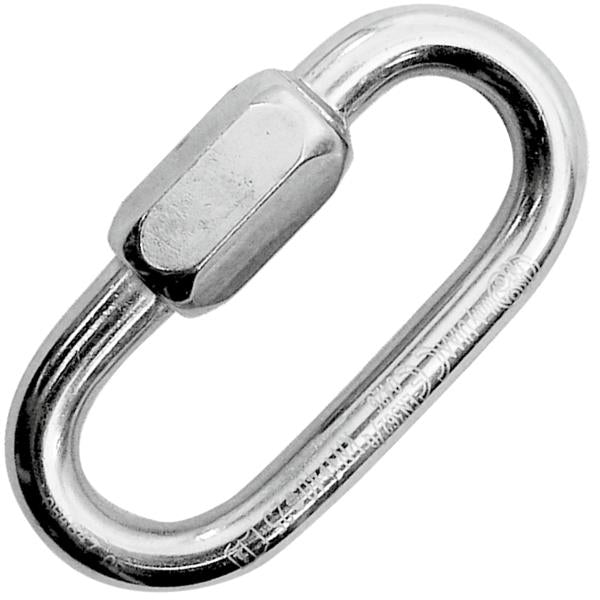

Oval Quick Link
Stainless steel 304 or carbon steel oval quick link.
Available in various sizes.
High quality, tested piece by piece.
Attention: the part numbers in the chart below that do not mention a certification are not PPE and are therefore not suitable for human suspension.
Standards - EN 12275/Q, EN 362/Q, UIAA, EAC
Material - Stainless steel 304
Major Axis Load - 1100, 1400, 2250, 3250, 40kN, 60kN, 12500 kg
Minor Axis Load - 20 kN
Main Axis Load - B.L. (kg)
Main Axis Load - W.L.L. (kg)
Weight - 9, 13, 22, 34, 79, 142, 222 g
A. Length - 37, 41, 50, 58, 74, 89, 105 mm
B. Width - 17, 21, 26, 29, 39, 47, 52 mm
C. Body Diameter 3.5, 4, 5, 6, 8, 10, 12 mm
D. Opening - 5.5, 6, 7, 8, 10 ,12, 14 mm
Material - Stainless steel 304
Major Axis Load - 1100, 1400, 2250, 3250, 40kN, 60kN, 12500 kg
Minor Axis Load - 20 kN
Main Axis Load - B.L. (kg)
Main Axis Load - W.L.L. (kg)
Weight - 9, 13, 22, 34, 79, 142, 222 g
A. Length - 37, 41, 50, 58, 74, 89, 105 mm
B. Width - 17, 21, 26, 29, 39, 47, 52 mm
C. Body Diameter 3.5, 4, 5, 6, 8, 10, 12 mm
D. Opening - 5.5, 6, 7, 8, 10 ,12, 14 mm
