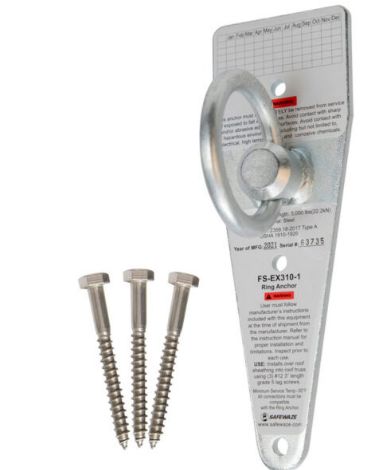

The Ring Anchor is a compact reusable anchor solution with a large ring connection point. Easily installs on wood roofs with included threaded fasteners provided.
- Reusable roof anchor for wood or metal
- Includes (3) 5/16″ x 3″ hex lag screw
- Technical Data Sheet
- Materials: Zinc plated steel anchor, stainless steel fasteners
- Weight: 1.8 lbs. (.8 kg)
- Minimum Breaking Strength: 5,000 lbs.
- ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
- OSHA Weight Capacity: Up to 420 lbs. (191 kg)
- Length: 9 inches
- ANSI Standards: Z359.18 Type A
- OSHA Standards: 1926.502, 1910.140
Meets OSHA 1926.502, ANSI Z359.1, ANSI A10.32
