Description
DOUBLE GATE CONNECTOR WITH SWIVEL

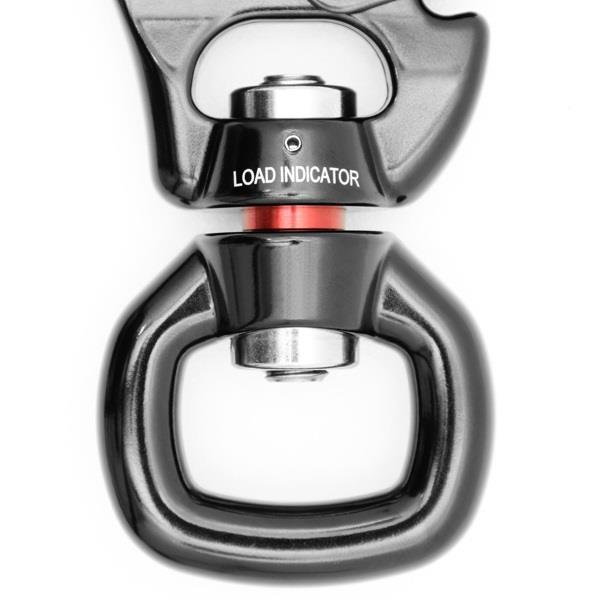

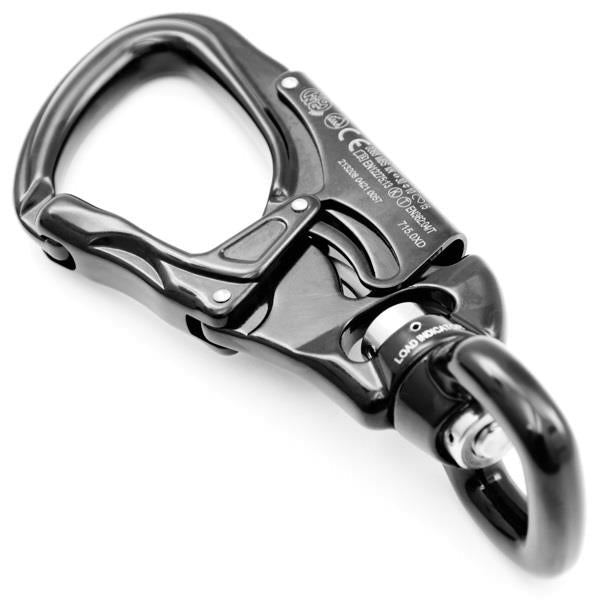

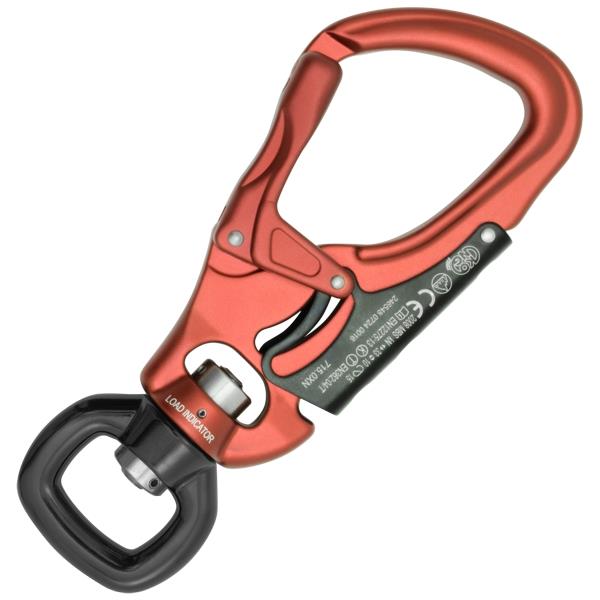

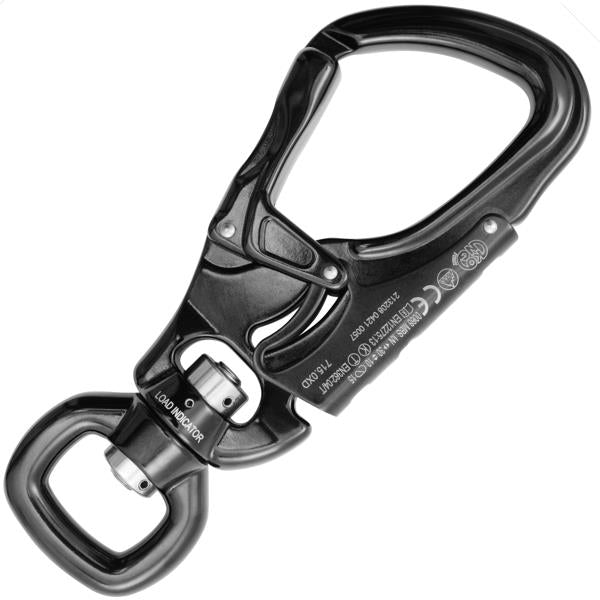

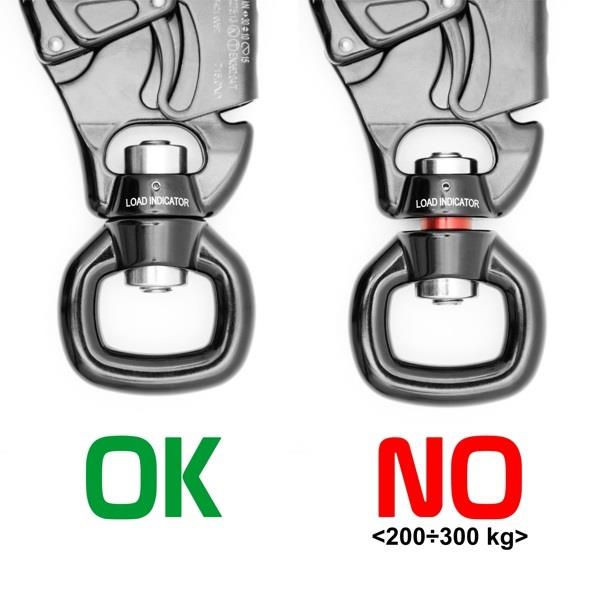

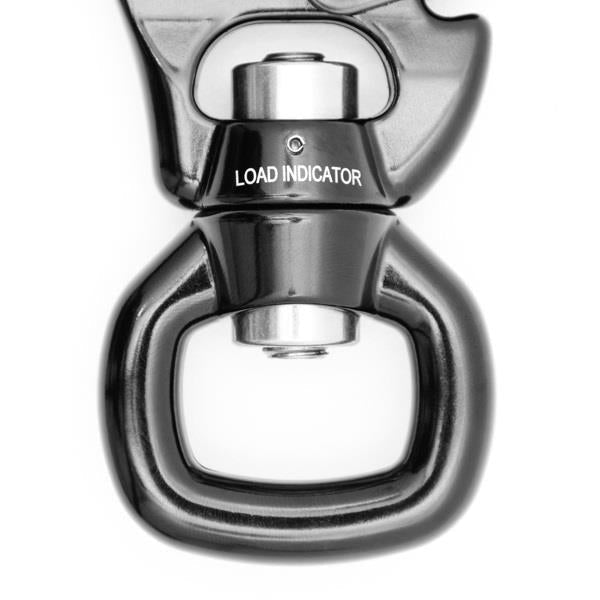

Tango 360 is the integration of our Tango connector with a highly efficient swivel and overload indicator that activates when stressed with a load between 200 and 300kg.
It is a directional connector, designed to avoid twisting of ropes, lanyards and metal cables. The Double Gate safety system makes it easy to use and reduces the risk of accidental opening. The Keylock system avoids accidental snags during maneuvers.
Standards - EN 12275/K, UIAA, EN 362/T
Material - Alu Alloy
Type - Keylock
Main Axis Load - 30kN
Minor Axis Load - 10kN
Open Gate Load - 15kN
Weight - 205g
Shape - Special
A. Length - 175mm
B. Width - 70mm
C. Body Diameter - /
D. Eyelet Diameter - 15mm
E. Gate Opening Diameter - 26mm
Sleeve - Double Gate
Features - Eye
